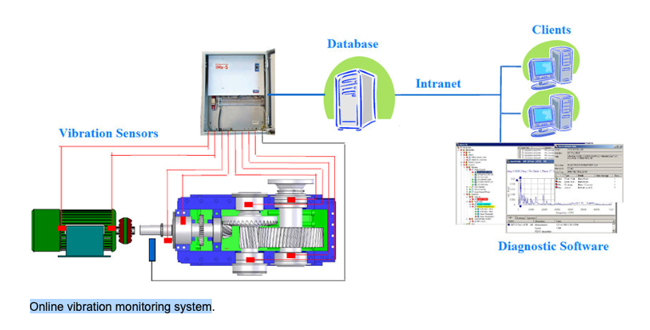

The AVM9000 is a simple one channel online monitoring system. Measured value is displayed on the front panel and can be transferred to the control system through 4-20 mA current loop output. Green, yellow and red LEDs informs you about the machine/bearing vibration state. The AVM9000 unit includes one programmable output “ALARM” relay.

        — 1 channel, selectable value
        — Display of actual value
        — 4-20 mA current loop output
        — Relay output
        — Easy PC setting

        — Inputs: for acceleration sensor. Input is able to process signal with maximum voltage ±5 V
        — Outputs: 4- 20 mA current loop (selectable active/passive) with setting of range of measured unit
        — Measuring Ranges: 0 – 99.9 g, 0 – 999 mm/s (by sensor sensitivity, input signal: max. ±5 V)
        — Frequency Bands: [ g ] 0,8 Hz – 16 kHz[ g ] 5 kHz – 16 kHz[ mm/s ], [ ips ] 10 Hz – 1 kHz
        — Frequency ranges could be changed under request.
        — Sensor: accelerometer, powered
        — LEDs: Vibration state indication according to defined vibration limits
        — Power indication
        — error indication
        — Powering: 20 - 28 V DC (70mA/24V DC), external current loop supply (10-30V DC)
        — Dimensions: 90 x 53 x 58 mm
        — Weight: 130 g
        — Protection: IP 20
