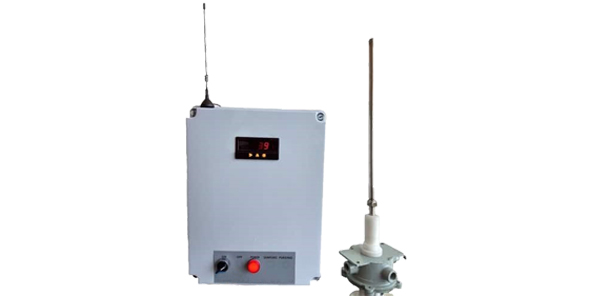

The series AM1000 suspended particulate monitor sensor is reliable dust collector emission and leak detector. The sensor connects directly to PLCs or other system which accepts 4-20 mA. Further the adjustable liner output scaling enables both the baseline and peak emissions that are caused by filter cleaning cycles.Alarm setting possible at any predefined value.

The AM1000 works on field proven combination of induction and protected-prove technologies. As particles flow near and around the sensor probe , minute currents are dynamically included into the probe (Tribo-Electric Charge). The signal gets converted into an absolute output relative to the amount of particulate. Protective layers over prove work in combination with introduction sensing to ensure reliable operation with all types of particulate including moist powder sand highly conductive dusts. Maintenance is minimal and there is no need for an air purge.

Filter failure alarm in particulate arresting systems (optional)>Stack Guard specially designed for broken bag detection in exhausted duct of bag houses, cartridge collectors, cyclones, and any other collector containing filter which break or wear out it finds extensive application in following industries:

        — Ferrous metal
        — Non ferrous metal
        — Cement
        — Textile industries
        — Chemical processing
        — Pharmaceutical
        — Food processing
        — Iron & steel
        — Sugar
        — Dyeing & dyeing intermediate
        — Zinc
        — Paper plants
        — And Others

        — Easy to install with no moving part
        — Easy maintenance and low capital and maintenance cost
        — Can be calibrated to show emission levels in mg/nm3
        — adjustable range from 1-1000 mg/nm3
        — Minimum Detection limit less than 1mg/nm3
        — Built in operational diagnostics
        — SENSOR DIAMETER : 125mm
        — Range : 1-1000 Mg/nm3
        — Digital Output : Optional
        — Operating Temp(ambient) : -15 to 50°c
        — Positioning : 90 to Duct Wall
        — Operating Temp(gas) : -15 to 250°c
        — Power Supply : 24vdc
        — Analogue Output : 4“ 20 Ma Dc
        — SENSOR LENGTH : 200mm
        — Insulation : Ptfe(t Model - Glass Model)
        — Probe : According to Diameter of Stack
        — Alarm Level : Adjustable Over the Full Range
        — Socket : Single Flat Flanged Fitting
        — Operating Temp. : -15 to 50°c
        — Construction : 315 Grade Stainless Steel
        — Technique : Tribo-electric Charge Transfer
        — Response Time : Instaneous
        — Sensi Tivity : Adjustable Over a Wide Dynamics Ranmge
